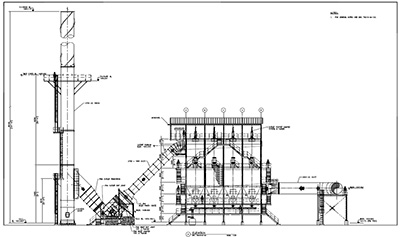

Basic Engineering Layout

Anode Furnace Off-Gas system

Client: Mexicana de Cobre

Location: La Caridad, Mexico

Conceptual and Basic Engineering of a new anode furnace off-gas system.

Design Includes:
  • Installation of exhaust port on furnace shell.
  • Pneumatic operated mouth cover.
  • Refractory lined primary off gas hood.
  • Spray cooling system
  • 345,000 m3/hr baghouse with ID fan and motor
  • Arc flash resistant starter, PLC controls and instrumentation.
Project History

Conceptual Engineering
Basic Engineering

2012
2014
